90° Elbow short Radius CXC

Overview

In modern plumbing, HVAC, and mechanical piping projects, installation environments are becoming increasingly complex. Limited space, crowded equipment areas, and compact building structures often require pipe fittings that provide reliable directional changes without adding unnecessary length or complexity. The Copper 90° Short Radius Elbow is specifically developed to solve these challenges by delivering a precise 90-degree pipe direction change in a compact and efficient design.

Unlike traditional long-radius elbows that require more installation space, this short-radius elbow features a centerline radius approximately equal to the nominal pipe diameter. This optimized geometry allows the fitting to create a tighter turn while maintaining connection reliability and structural strength. It is an ideal choice for projects where space efficiency, accurate pipe positioning, and professional installation quality are essential.

Designed for Compact and Flexible Installation

The biggest advantage of the Copper 90° Short Radius Elbow is its ability to maximize available installation space. In many residential, commercial, and industrial projects, piping systems must be routed through confined areas such as mechanical rooms, ceilings, equipment enclosures, and narrow wall spaces. Traditional fittings may require additional clearance, making installation more difficult and increasing material usage.

This compact elbow provides a practical alternative by allowing installers to achieve a clean 90-degree turn within a smaller footprint. Its space-saving design simplifies pipe layout planning and enables more efficient use of installation areas.

For contractors working on renovation projects, high-density mechanical systems, or applications with strict dimensional limitations, this fitting offers greater flexibility and easier integration into existing piping networks.

Reliable Copper Construction for Long-Term Service

Manufactured from high-quality copper, the Copper 90° Short Radius Elbow delivers excellent durability, corrosion resistance, and mechanical stability. Copper has long been recognized as a preferred material for professional piping systems due to its ability to maintain performance under changing temperatures, pressure variations, and continuous operation.

The fitting’s copper construction provides excellent resistance against corrosion and oxidation, helping prevent premature deterioration and reducing maintenance requirements. This makes it suitable for long-term use in water supply systems, heating installations, cooling applications, and other demanding environments.

In addition, copper’s excellent thermal conductivity supports efficient heat transfer, making the elbow particularly suitable for HVAC and refrigeration applications where temperature control and energy efficiency are important considerations.

Precision Manufacturing for Secure Connections

Every Copper 90° Short Radius Elbow is manufactured with carefully controlled dimensions to ensure accurate compatibility with copper tube systems. The precise socket design allows smooth pipe insertion and supports reliable soldering or brazing installation.

During installation, the fitting creates a strong mechanical and sealed connection through capillary action, allowing solder or brazing alloy to distribute evenly throughout the joint area. This results in a durable connection capable of handling system pressure and operational demands.

The smooth internal surface of the elbow also helps maintain efficient fluid movement by reducing unnecessary turbulence and resistance. This contributes to stable flow performance and helps optimize the overall efficiency of the piping system.

Versatile Applications Across Multiple Industries

The Copper 90° Short Radius Elbow provides a dependable solution for a wide range of applications, including:

Residential Plumbing Systems

In homes and residential buildings, this elbow is commonly used for hot and cold water distribution pipelines, bathroom plumbing, kitchen supply lines, and heating connections. Its compact structure helps installers create neat and efficient pipe layouts, especially in areas where available space is limited.

Commercial HVAC Installations

For commercial buildings, air conditioning systems, and mechanical facilities, precise pipe routing is essential. The Copper 90° Short Radius Elbow is suitable for connecting copper refrigerant lines, heat pump systems, and other HVAC equipment where compact installation and reliable performance are required.

Refrigeration and Cooling Systems

In refrigeration applications, including commercial cooling equipment, freezers, and industrial refrigeration systems, this fitting provides stable performance under temperature fluctuations. Its copper construction ensures compatibility with refrigerant piping while maintaining reliable connections over extended operating periods.

Industrial Piping Projects

The elbow can also be used in industrial fluid transportation systems, process cooling circuits, and specialized mechanical installations where durable and space-efficient pipe connections are necessary.

Built to International Standards

To ensure consistent quality and worldwide compatibility, the Copper 90° Short Radius Elbow is manufactured according to recognized international standards, including EN 1254-1 and ASME B16.22. These standards establish strict requirements for material quality, dimensional accuracy, manufacturing processes, and performance reliability.

Compliance with these specifications ensures that the fitting can meet the expectations of professional engineers, contractors, and distributors across different markets. Whether a project follows European or American piping requirements, this elbow provides dependable compatibility and consistent performance.

A Smarter Choice for Modern Piping Challenges

The Copper 90° Short Radius Elbow combines compact engineering, reliable copper performance, and precise manufacturing to deliver an effective solution for modern piping systems. It helps installers overcome space limitations while maintaining strong connections, smooth flow characteristics, and long-term durability.

From residential upgrades and commercial HVAC projects to industrial applications, this fitting provides the flexibility needed for efficient pipeline design. When every installation detail matters, the Copper 90° Short Radius Elbow offers a practical, professional, and reliable way to make every turn more efficient.

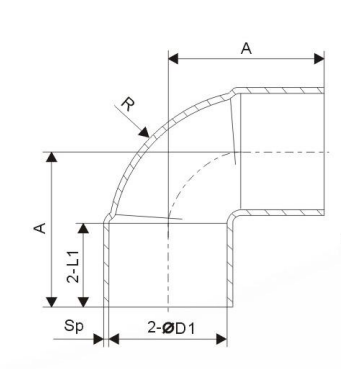

Technical Specifications

Product Application

● Plumbing Systems

Widely used in domestic water supply and gas lines for residential and commercial buildings due to copper's resistance to microbial growth and high-pressure tolerance.

● HVACR Industry

Essential for air conditioning and refrigeration systems, particularly in split units where refrigerant lines require precise 90-degree routing.

● Industrial & Medical Use

Employed in oil and gas transfer lines as well as medical gas systems, where the integrity of the connection is paramount to prevent leaks in critical environments.
